　　AEM适应试产需求，推出全新一代OTDR光时域反射计，极小的盲区，大动态范围，支持局域网、城域网光缆的故障定位和损耗测试，下面我们来一睹新一代AEM OTDR的风采。

　　以下为英文介绍资料，请酌情参考。

　　Tier 1-Optical Loss Testing

　　Tier 1 Certification-Optical Loss Testing

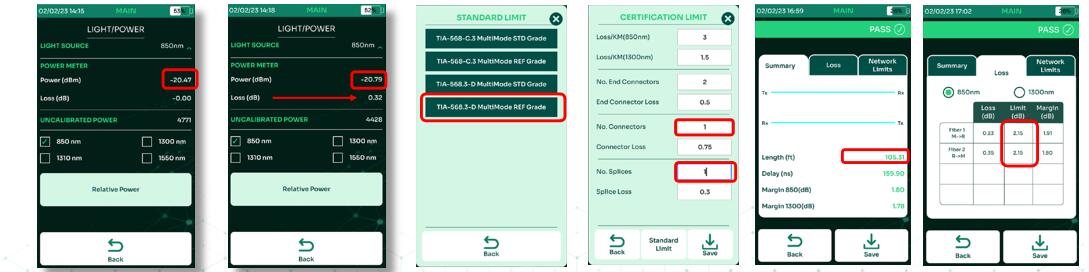

　　In its simplest form and optical loss testing is a comparison between the optical power measured in dBm at the output of the light source and the power measured at the far end of a fiber connected to that same light source.The difference is known as loss or attenuation,expressed in dB.

　　Combining the light source/power meter,measuring against standards and providing a pass/fail is known as an Optical Loss Test Set.

　　AEM OTDR光时域反射计

　　Tier 2 Testing

　　TIA-568:Optical Fiber Cabling and Components Standard

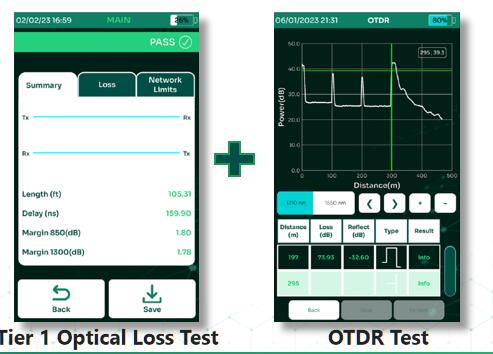

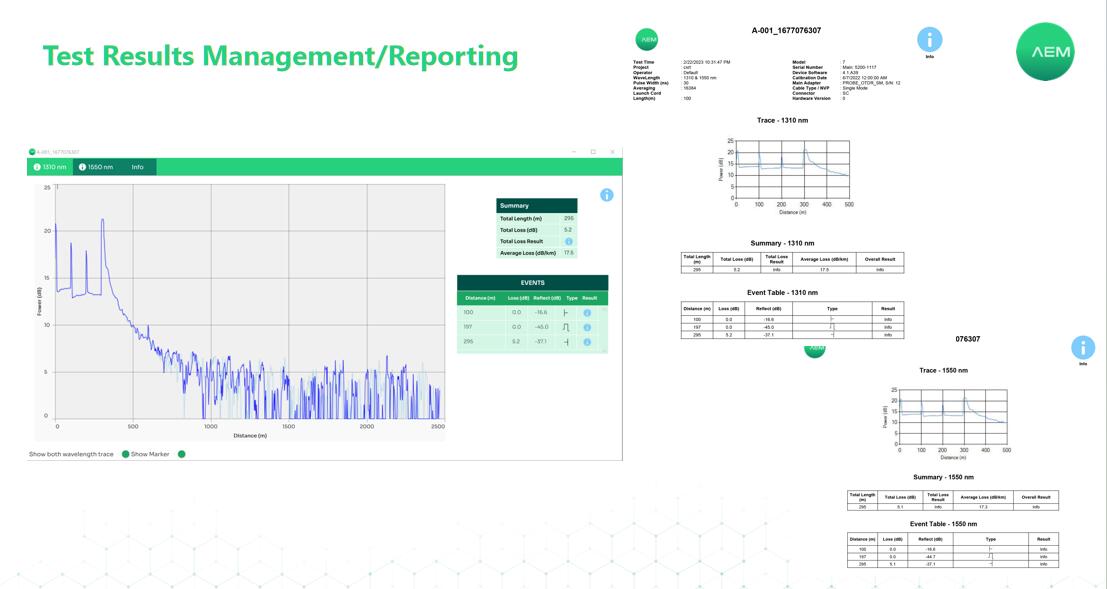

　　Tier 2 testing supplements Tier 1 testing with the addition of an OTDR characterization of the elements along the fiber cabling.

　　Simply put,Tier 2 is just testing the same fiber with an OLTS and an OTDR and documenting the results of both.

　　AEM OTDR光时域反射计

　　AEM OTDR Specifications

　　Available wavelengths

　　MM 850nm/1300nm

　　SM 1310nm/1550nm

　　Event dead zone

　　0.5m to 0.7 depending on wavelength

　　Attenuation dead zone

　　2.5m to 4.5m depending on wavelength

　　Dynamic Range

　　25dB 850nm/27dB 1300nm

　　29dB 1310nm/27dB 1550nm

　　Distance Measurement Range

　　9km for 850nm,35km for 1300nm

　　80km for 1310nm,130km for 1550nm

　　Pulse Width

　　3,5,10,15,…,24995,25000 nsec

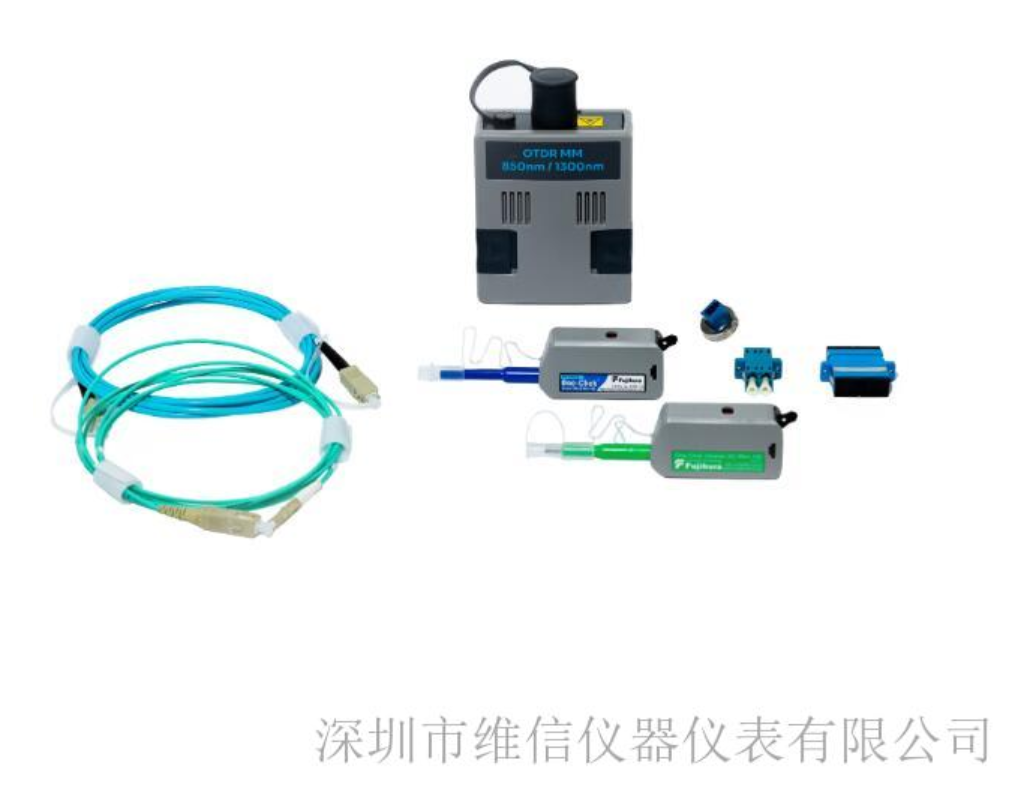

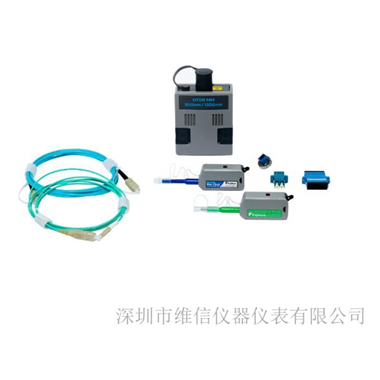

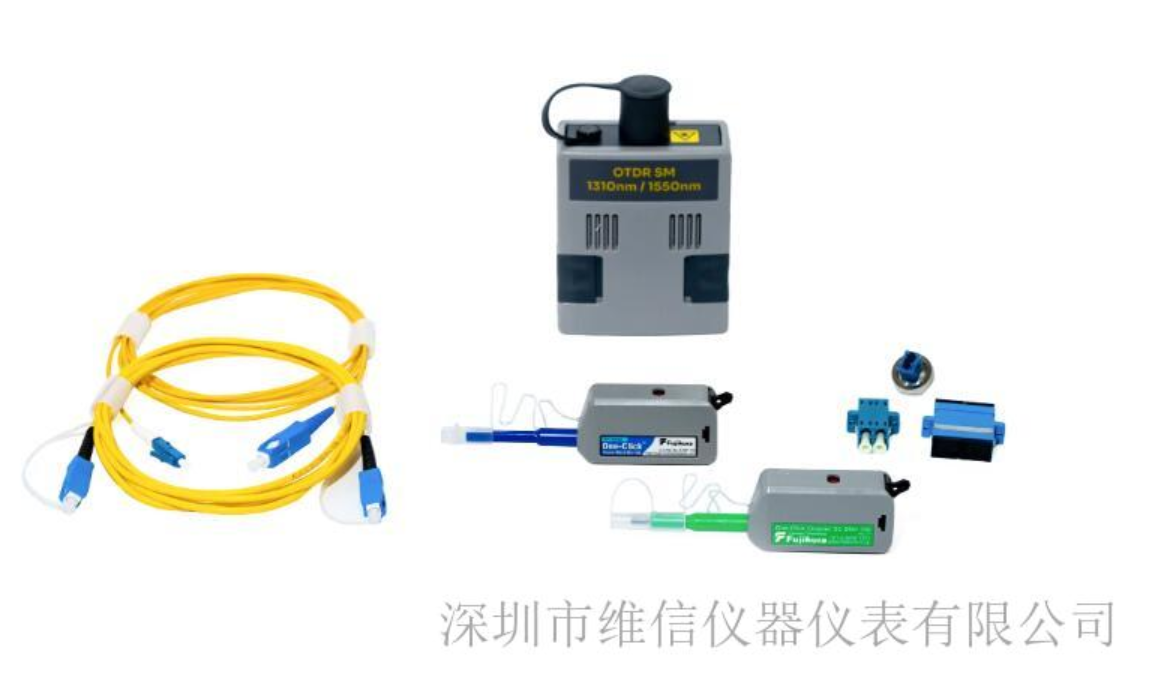

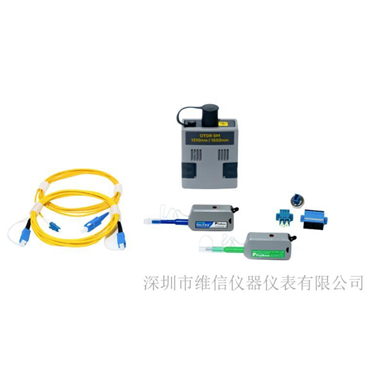

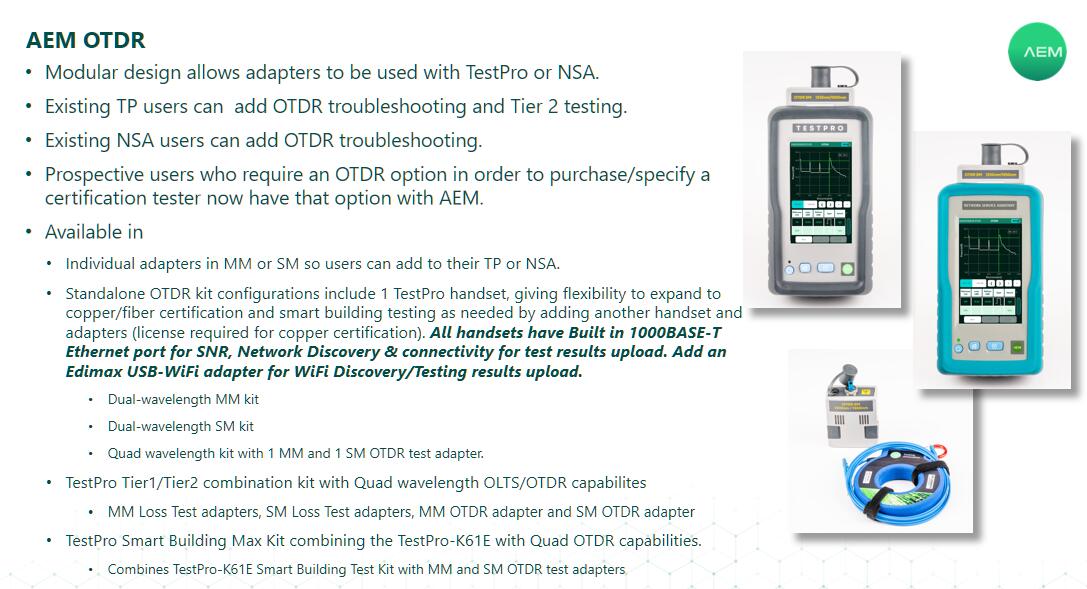

　　Individual adapters AD-OTDR-SM/AD-OTDR-MM are boxed and include 1 each of:

　　SC interface

　　2m SC-SC TRC(“connector protectors”)

　　LC&SC coupler

　　1.25mm&2.5mm connector cleaners

　　AEM OTDR光时域反射计

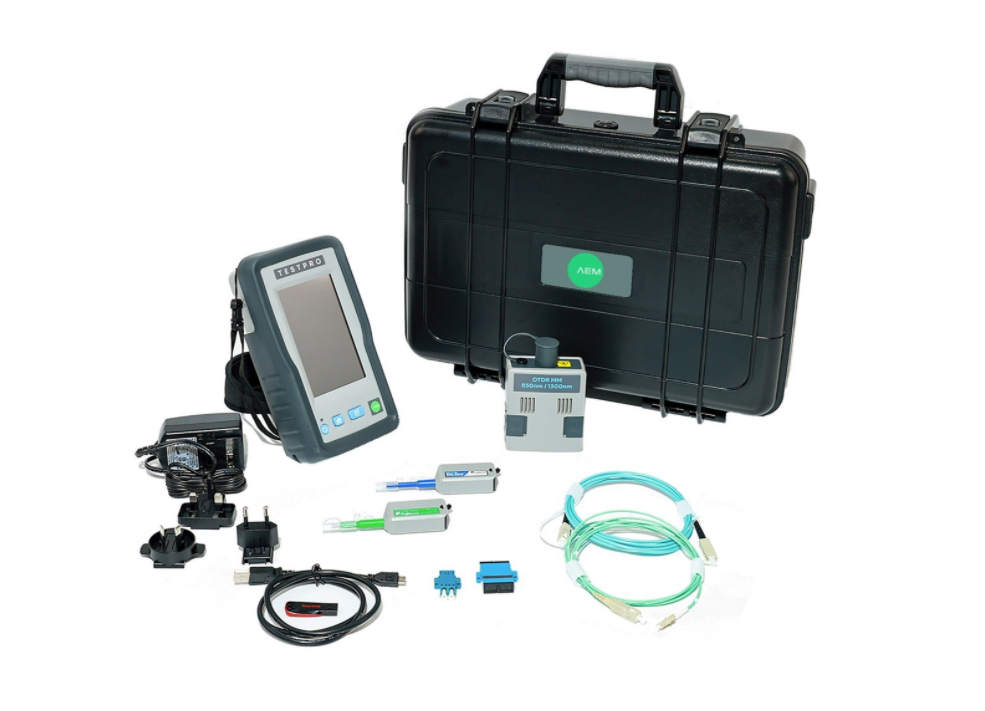

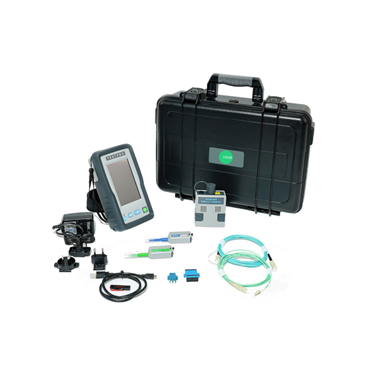

　　Standalone OTDR kits/combination kits K21E/K41E/K71E include a hard case.

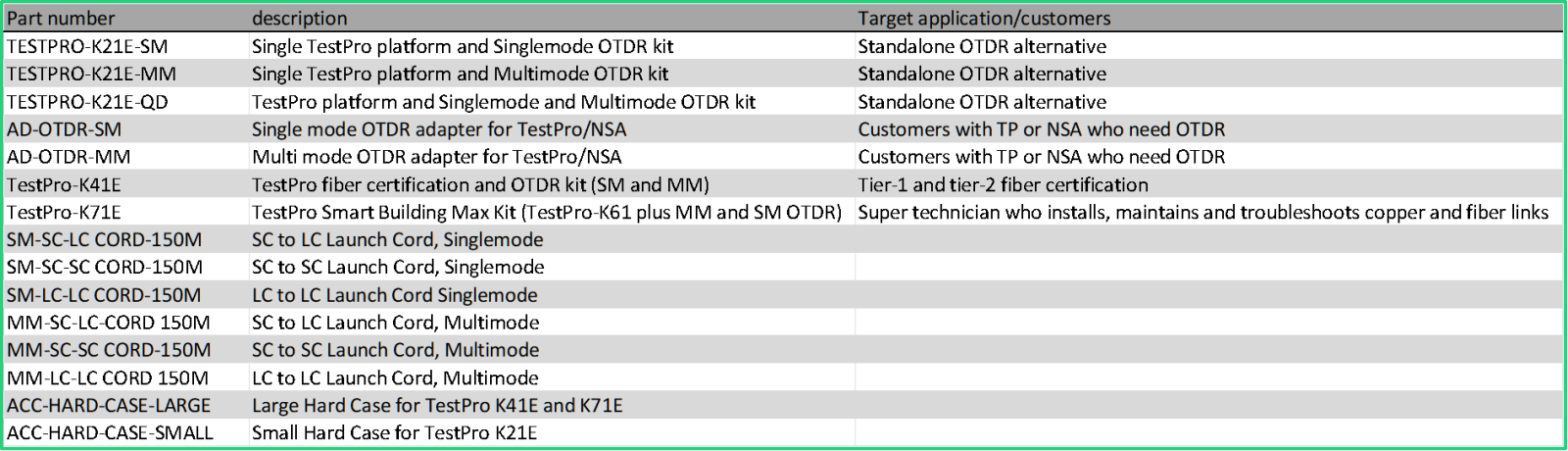

　　Launch cords are included ONLY with the Tier 1/Tier 2 combination kit K41E and the Smart Building Max kit K71E and must be purchased separately for all other configurations.
