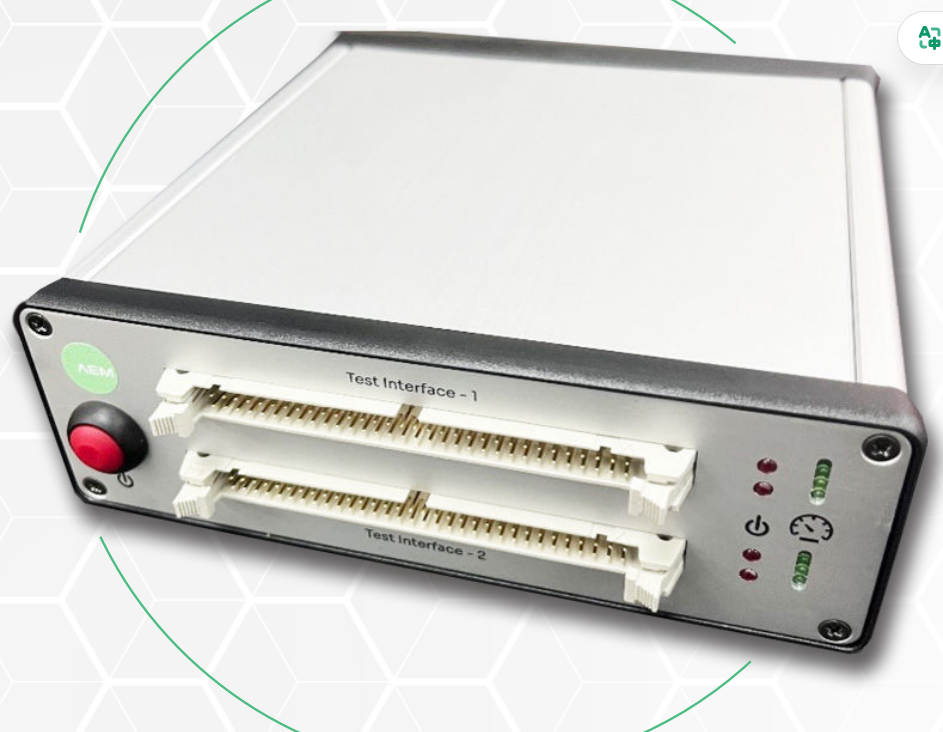

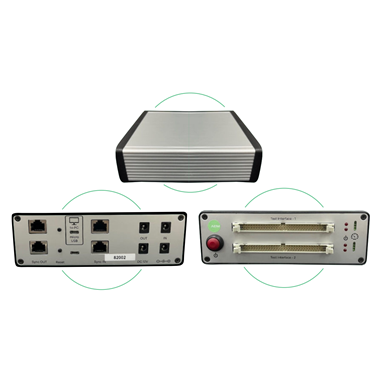

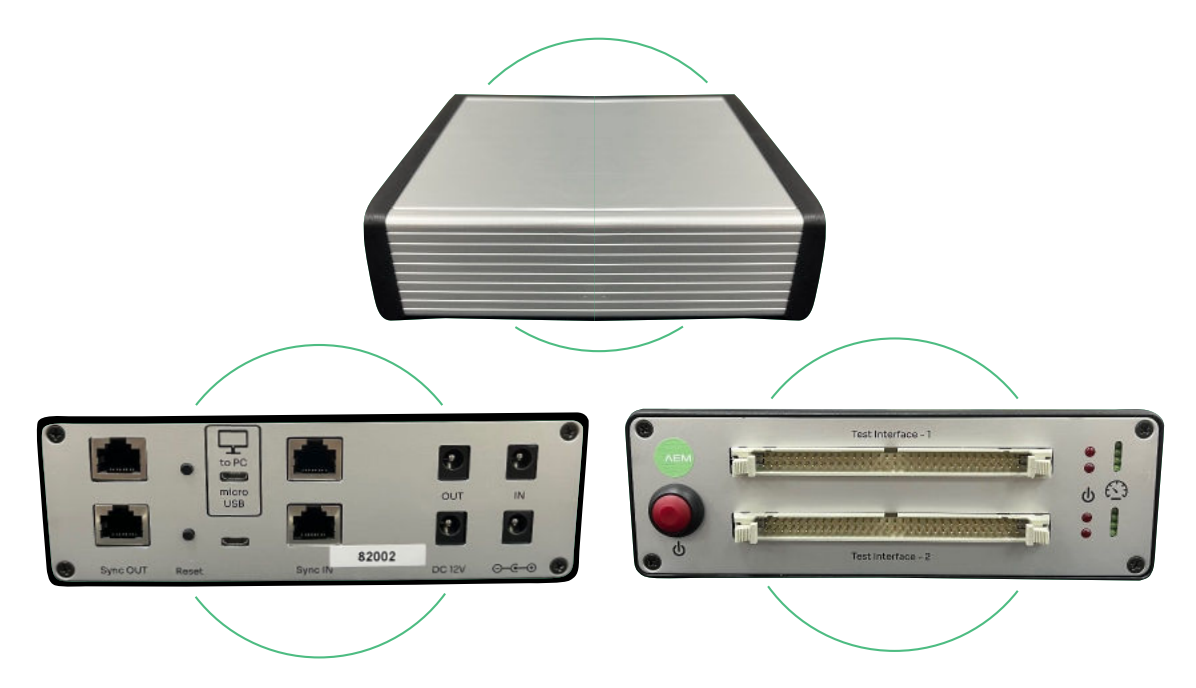

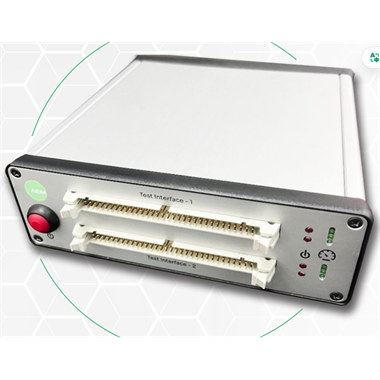

Cable HarnessTester AHT-128（PRODUCT FEATURES&SPECIFICATIONS）
TEST POINTS
TEST PARAMETERS
TEST SIGNAL CHARACTERISTICS
RESISTANCE MEASUREMENT
COMPUTER REQUIREMENTS
TEST TIME
USER INTERFACE
POWER
SIZE
WEIGHT
128 points(Expandable to 1024 points in increments of 128 points)
Up to 8 points in each net
Continuity,Resistance
Excitation voltage:1.7V max,Current Injection:3µA to 1.7A
0.1Ωto 100Ω,±0.1Ω
Any Windows-capable machine running Windows 7 or later
200 msec per port

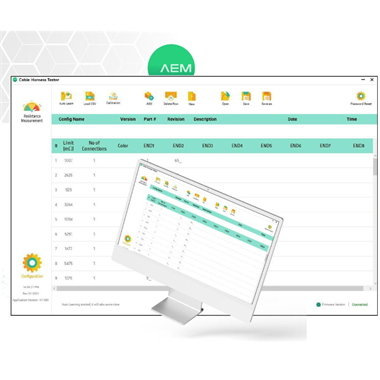

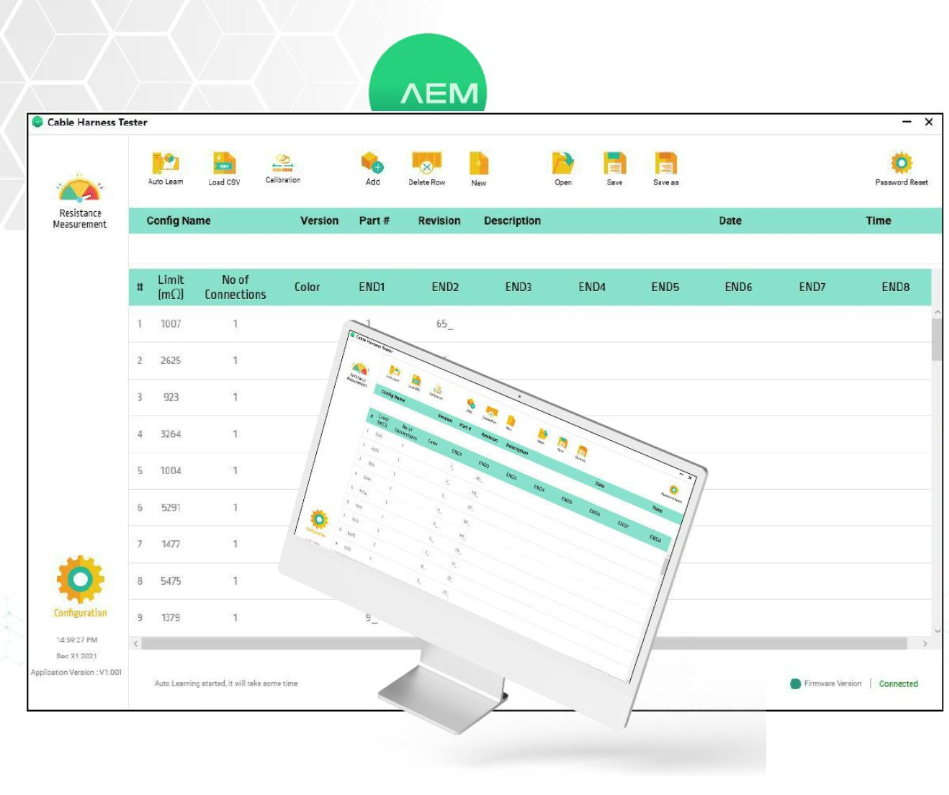

Desktop Application&USB Interface to connect to PC
12 VDC,5A
56mm(h)x 170mm(w)x 192mm(d)
0.9kg
Value Product Specifications
